Fabrication and Evaluation of Organic Field-Effect Transistors (OFETs) : 6T
![6T [S0504]](/structure-300/S0504.jpg)
α-Sexithiophene (purified by sublimation)
6T
CAS RN: 88493-55-4
Product Number: S0504
Performance of 6T [S0504]-based OFETs
![Fabrication method and evaluation of vacuum-deposited 6T [S0504]](/assets/cms-images/S0504-device-method-structure-en.png)
Table. OFETs Characteristics of 6T [S0504]-based OFETs
| Entry | Fabrication Method | Device Configuration | SAM Treatment | Tsub (°C) | Polarity | μ (cm2 V−1 s−1) | Vth (V) | Ion/Ioff |
|---|---|---|---|---|---|---|---|---|
| Entry1 | Fabrication MethodVacuum deposition | Device ConfigurationTCBG | SAM Treatmentw/o Bare | Tsub (°C)RT | Polarityp | μ (cm2 V−1 s−1)2.3 × 10-2 | Vth (V)-14 | Ion/Ioff106 |

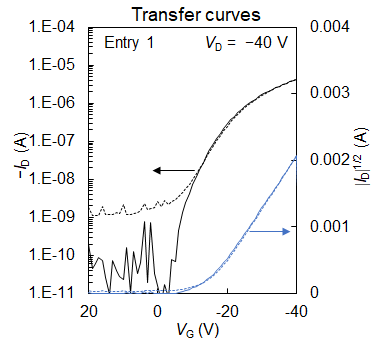

Figure. Transfer curves in the saturated region
Experimental details
Fabrication and evaluation of vacuum-deposited 6T [S0504]-based OFETs
< Substrate >
< Vacuum Deposition >
< Device Configuration >
< Evaluation Condition >
< Substrate >
- Bare Si/SiO2 (thickness of SiO2: 200 nm)
< Vacuum Deposition >
- Deposition rate of 6T [S0504] 0.2 Å/s (under a pressure of∼10−4 Pa)
- Substrate temperature during deposition: RT
- Deposition rate of Au: 1.0 Å/s (under a pressure of∼10−4 Pa)
< Device Configuration >
- [n+-Si/SiO2 (200 nm) / 6T [S0504] (60 nm) / Au (40 nm)]
- Top-Contact Bottom-Gate Type (TCBG)
- Channel Length: 50 μm
- Channel width: 1.5 mm
< Evaluation Condition >
- Under N2
- Field-effect mobilities (μ) were determined from the transfer curves in the saturation regime using the following equation:
ID = (W/2L) μ Ci (VG − Vth)2
