Published TCIMAIL newest issue No.198
Maximum quantity allowed is 999
Please select the quantity
CAS RN: 7681-65-4 | Product Number: R0314
CuI (HPMC encapsulated)
×
![]()
×
Purity:
Synonyms:
Product Documents:
| Size | Unit Price | Belgium | Japan* | Quantity |
|---|---|---|---|---|
| 10EACH |
€ 65,00
|
Contact Us | 13 |
|
*Stock available in Belgium will be delivered in 1 to 3 days
*Stock available in Japan will be delivered in 1 to 2 weeks (excludes regulated items and dry ice shipments).
| Product Number | R0314 |
| Molecular Formula / Molecular Weight | CuI = 190.45 |
| Physical State (20 deg.C) | Solid |
| Storage Temperature | Room Temperature (Recommended in a cool and dark place, <15°C) |
| Store Under Inert Gas | Store under inert gas |
| Condition to Avoid | Hygroscopic |
| CAS RN | 7681-65-4 |
Specifications
| Appearance | White to Almost white capsule |
| Functionality test (conversion ratio) | min.90.0 % |
Properties (reference)
GHS
| Pictogram |
|
| Signal Word | Danger |
| Hazard Statements | H302 : Harmful if swallowed. H315 : Causes skin irritation. H318 : Causes serious eye damage. H373 : May cause damage to organs through prolonged or repeated exposure. H317 : May cause an allergic skin reaction. H335 : May cause respiratory irritation. H410 : Very toxic to aquatic life with long lasting effects. |
| Precautionary Statements | P273 : Avoid release to the environment. P260 : Do not breathe dust. P264 : Wash skin thoroughly after handling. P280 : Wear protective gloves/ eye protection/ face protection. P391 : Collect spillage. P305 + P351 + P338 + P310 : IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing. Immediately call a POISON CENTER/doctor. |
Related Laws:
Transport Information:
| UN Number | UN3077 |
| Class | 9 |
| Packing Group | III |
| HS Number | 3822190090 |
Application

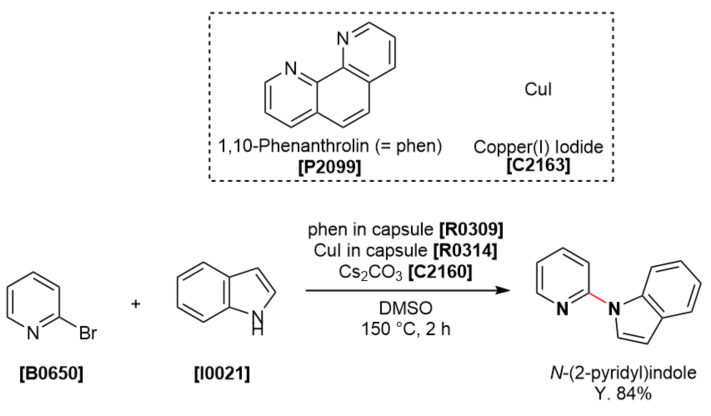

TCI Practical Example: Goldberg Amination Using Capsule Reagents
-
Used Chemicals
-
Procedure
- Copper(I) iodide (HPMC encapsulated) (one capsule) and 1,10-phenanthrolin (HPMC encapsulated) (one capsule) were added to a solution of indole (93.7 mg, 800 µmol), 2-bromopyridine (164 mg, 1.04 mmol, 1.3 eq.) and cesium carbonate (521 mg, 1.60 mmol, 2.0 eq.) in DMSO (2.5 mL) at r.t. and the reaction mixture was stirred at 150 °C for 2 hours. After cooling to r.t., the solution was diluted with ethyl acetate (15 mL) and sat. Na2SO4 aq. (15 mL), and filtered through Celite pad and the filtrate was extracted with ethyl acetate (15 mL x 2). The organic layer was washed with 2 mol/L HCl (15 mL) and sat. NaHCO3 aq. (15 mL), dried over sodium sulfate and concentrated under reduced pressure. The crude product was purified by silica gel column chromatography (ethyl acetate:hexane = 10:1 - 5:1) to afford N-(2-pyridyl)indole (130 mg, 84% yield) as a pale-yellow oil.
-
Experimenter’s Comments
-
The reaction mixture was monitored by UPLC.
The material of the capsule is water-soluble HPMC (hydroxypropyl methylcellulose).
he capsule has the shape shown in Figure 1 and 1,10-phenanthrolin (ca. 200 μmol) and copper(I) iodide (ca. 800 μmol) are encapsulated in each capsule, respectively.
Figure 1. Appearance of capsule
The capsules dissolves in water or polar solvents as shown in Figure 2.
Figure 2. Capsule disintegrating
(left) Just after the capsule is put in, (right) 15 minutes after the capsule is put in
-
Analytical Data
-
N-(2-Pyridyl)-indole
1H NMR (400 MHz, CDCl3); δ 8.21 (d, 1H, J = 8.0 Hz), 7.85-7.81 (m, 1H), 7.37 (d, 1H, J = 4.0 Hz), 7.67 (d, 1H, J = 8.0 Hz), 7.51 (d, 1H, J = 8.0 Hz), 7.30(t, 1H, J = 8.0 Hz), 7.23-7.16 (m, 2H).
-
Lead Reference
-
- Reagent and Catalyst Capsules: A Chemical Delivery System for Reaction Screening and Parallel Synthesis
-
Other References
-
- Transition-Metal-Free O-, S-, and N-Arylation of Alcohols, Thiols, Amides, Amines, and Related Heterocycles
